Overview
The rim structure with special shape design, the spoke holes are staggered on both sides of a centerline，are designed to match the angles between the spokes and the rim, as well as between the spokes and the hub, ensuring a smooth connection. When the rim is subjected to impact forces during use, the spokes can provide direct and effective support strength, preventing breakage due to sharp bends under stress.
The staggered distribution of the spoke holes creates larger spacing between two spoke holes, resulting in greater operational space. This facilitates wrench access during wheel assembly, particularly beneficial for small diameter rim.
Additionally, this design enhances the overall strength of the rim while contributing to weight reduction.
The rim can be used for bmx racing, bmx freestyle, folding bike etc.
1. Minimum order quantity(MOQ): 1 pc.
2. Spokes holes support 14H-36H holes or customized.
3. Support worldwide shipping, Lead time: 5-25 days.
4. 2 years standard warranty, any quality defects replace for free.
Please feel free to contact us for more details.

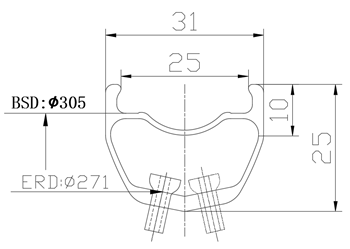

Specs
| Size: | 16" 305 |
| Model: | 305-T25-31 |
| Use: | BMX racing/ BMX freestyle |
| Type: | Tubeless&Clincher |
| Depth: | 25MM |
| Inner/outer Width: | 25mm/31mm |
| ERD: | 271mm(not including nipple) |
| Weight: | 200+/-10g |
| Weave: | UD/3K/12K/Marble |
| Finish: | Matte/Glossy |
| Holes: | 14H to 36H |
| Weight limit: | Max 100kg/220lb |
| Spoke Tension: | ≤150kgf recommended |
| Tire pressure: | Max 110 psi/7.58bar |
| Tire width: | 44 to 62 recommended |
