12 inch 203 Carbon Rims and Wheels

Overview

Lightweight 12" 203 carbon wheel.

Supprt custom hubs, hub O.L.D. can do 74mm/84mm/90mm/95mm/100mm or customized.

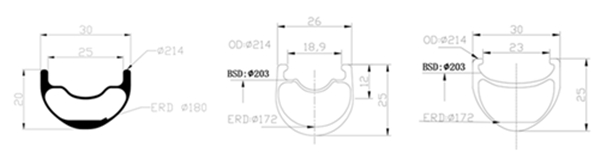

The rim options: 203-T20-30 or 203-T25-26 or 203-C25-30

The wheel will come with lock cap or axle or QR.

The rim support color painting tech, support custom colors.

The wheel can be used for Balance bike, Strider, Child bike, Kid's bike, Folding bike, wheelchairs, equipment etc

1. Minimum order quantity(MOQ): 1 pc.
2. Support worldwide shipping, Lead time: 5-25 days.
3. 2 years standard warranty, any quality defects replace for free.

Please feel free to contact us for more details.

Specs

Size: 12" 203
Model: 203-CW1
Use: Strider/balance bike/push bike
Type: Tubeless & Clincher
Depth: 20 or 25MM
Inner/outer Width: 18.9mm/26mm or 25/30mm
ERD: 170/180mm(not including nipple)
Weight: 175 or 210+/-10g
Weave: UD/3K/12K/Marble
Finish: Matte/Glossy

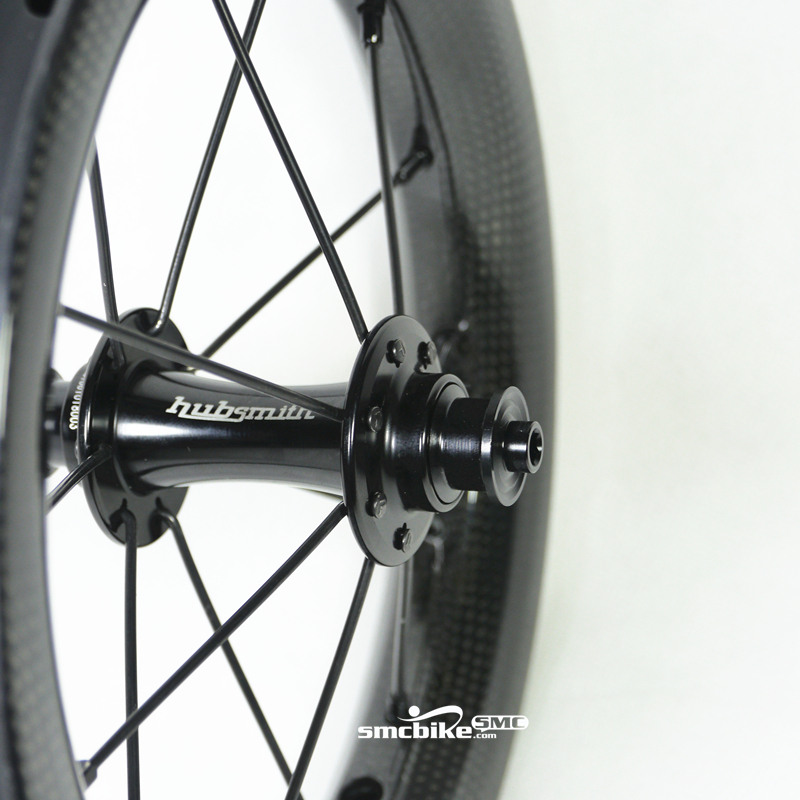

Hub: Hubsmith or custom
Hub O.L.D.:  74mm/84mm/95mm/100mm
Hub bearing: Standard or Ceramic
Hub color: Black/Red/Silver
Nipple color: Black/Red/Silver
Spokes: steel spokes or carbon spokes
Holes: 10H or 14H or 20H or custom
Weight limit: Max 75kg or 100kg/220lb
Tire pressure: Max 100 psi/6.89bar
Tire width: 26 to 50 recommended
