Our technology

We committed to develop the best carbon fiber products´╝îtry to be your most trusted friends

We are concern the product's quality and safty, so before the carbon rim on sale, we do a lot test, include vertical pressure test, profile pressure test, brake test and tire pressure test etc.

The vertical pressure test, profile pressure test, brake test are random sample test, the tire pressure test is 100% test before shipping out.

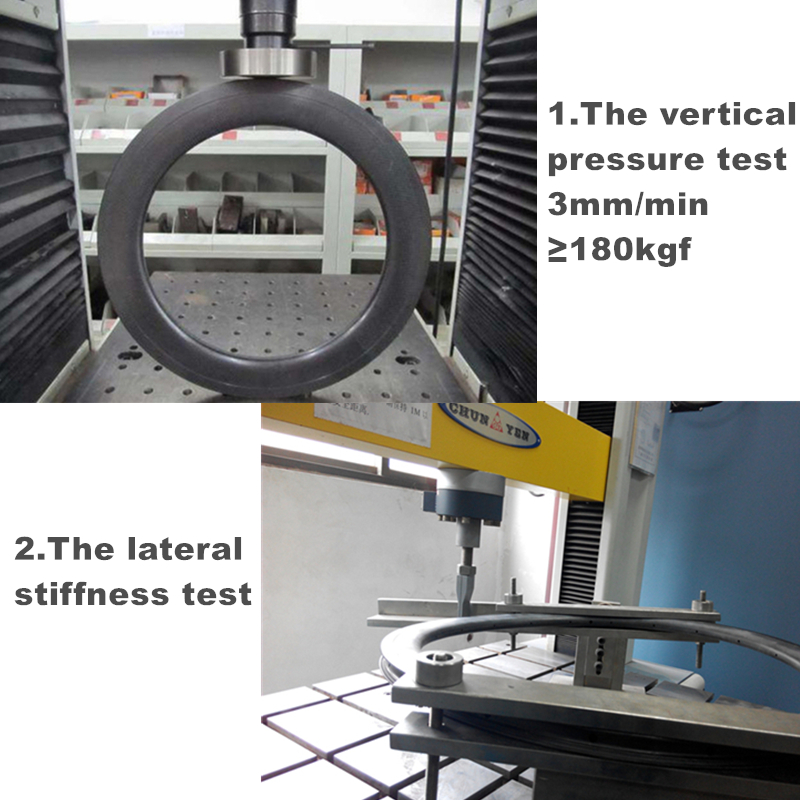

1. The vertical pressure test, based on EN14781, fix the sample on the test equipment, loading at the rate of 3mm/min until the load to 180kgf, check whether there is any fracture and visible deformation.

2. The Profile Pressure test, based on EN14781 test.

3. The brake test, based on EN14781 test the brake effect, brake distance, brake heat etc.

4. Tire pressure was 100% test before shipping out.

5. SGS Certification test Report





1. Surface Thermal Conduction Tech

The whole carbon rim surface use thermal conductivity nano materials Graphene, its thermal conductivity is>500W/m*k,brake heat can disperses effectively.

2. Dynamic Balance tech

To make the wheel always running balanced, on the valve opposite side of the rim, add carbon fabric to ensure balance.



3. Arc pull tech

Arc pull strip offer better support, the nipples with a low angle, not easy to loose.

4.  Special Assemble Technology --- SAT

We can drilling the rim only a valve hole on the rim outer, compare to normal spokes holes.

1). SAT can reduce damage to carbon shape.
2). Side pressure resistent increased by 10%
3). Not need to use rim tape.
4). Perfect overall sense.
