Use for recumbent bicycle and handcycle

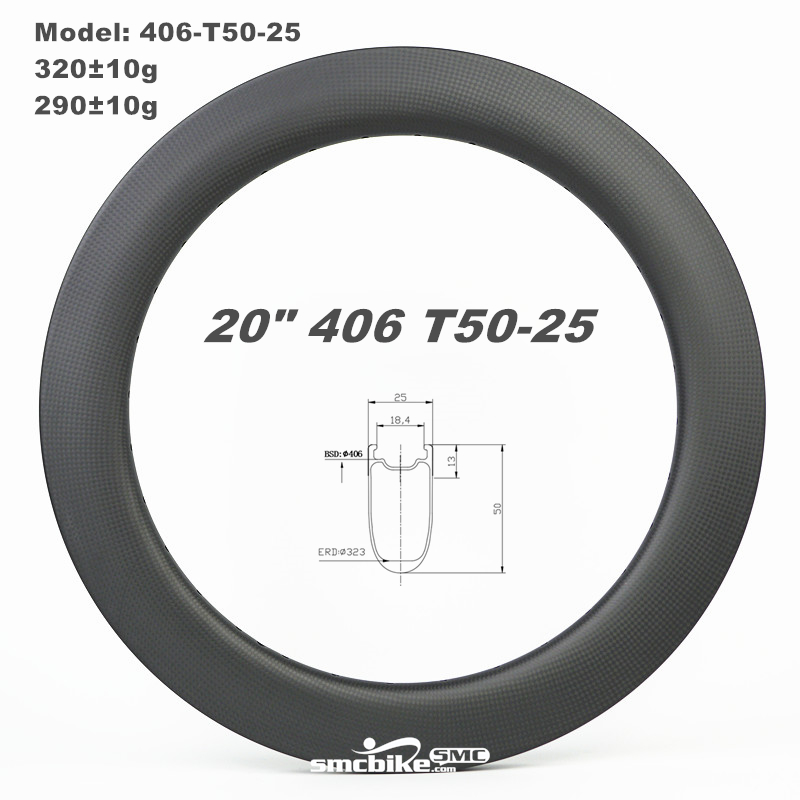

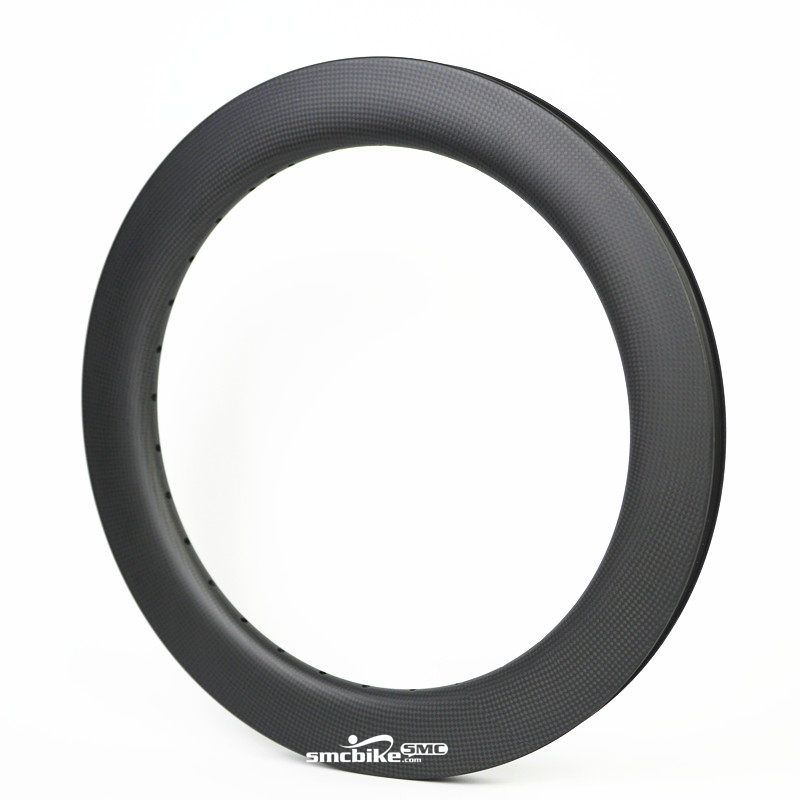

SMC 20inch 406 50MM Carbon rim SMC 20inch 406 50MM Carbon rim SMC 20inch 406 50MM Carbon rim



Overview

ETRTO 406mm 20x1.1 20x1.35 Tubeless carbon rim.

Weight options:

1. Standard version: 320±10g.

2. Lightweight version: 290±10g.

This rim can well fit Schwalbe pro one tubeless tire.

With U-Shape design, which is stronger and have a good aero.

This rim also compatible clincer tires, if need clincher version, click here.

The rim can be used for Birdy bike, Moulton bicycle, Dahon, Tern bike, Tyrell, Fsir, Folding bike, Recumbent bike, BMX, BMX Racing, ECO Car etc.

1. Minimum order quantity(MOQ): 1 pc.
2. Spokes holes support 14H-36H holes or customized.
3. Support worldwide shipping, Lead time: 5-25 days.
4. 2 years standard warranty, any quality defects replace for free.

Please feel free to contact us for more details.

Specs

Size: 20" 406
Model: 406-T50-25
Use: Folding bike/recumbent/bmx...
Type: Clincher & Tubeless

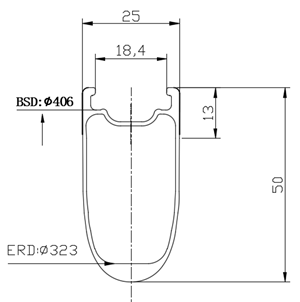

Depth: 50MM
Inner/outer Width: 18.4mm/25mm
ERD: 323mm(not including nipple)
Weight: 320 or 290g +/-10g
Weave: UD/3K/12K/Marble or Twill
Finish: Matte/Glossy
Holes: 14H to 36H
Weight limit: Max 130kg/286lb
Spoke Tension: ≤150kgf recommended
Tire pressure: Max 130 psi/8.96bar
Tire width: 25 to 47 recommended
