Use for recumbent bicycle and handcycle

Overview

406mm 20x1.35, 20x1.5 clincher carbon rim.

This rim is clincher version, if need Tubeless version, click here.

With U-Shape design, which is stronger and have a good aero.

The rim can be used for Birdy bike, Moulton bicycle, Dahon, Tern bike, Tyrell, Fsir, Folding bike, Recumbent bike, BMX, BMX Racing, ECO Car etc.

1. Minimum order quantity(MOQ): 1 pc.
2. Spokes holes support 14H-36H holes or customized.
3. Support worldwide shipping, Lead time: 5-25 days.
4. 2 years standard warranty, any quality defects replace for free.

Please feel free to contact us for more details.

Specs

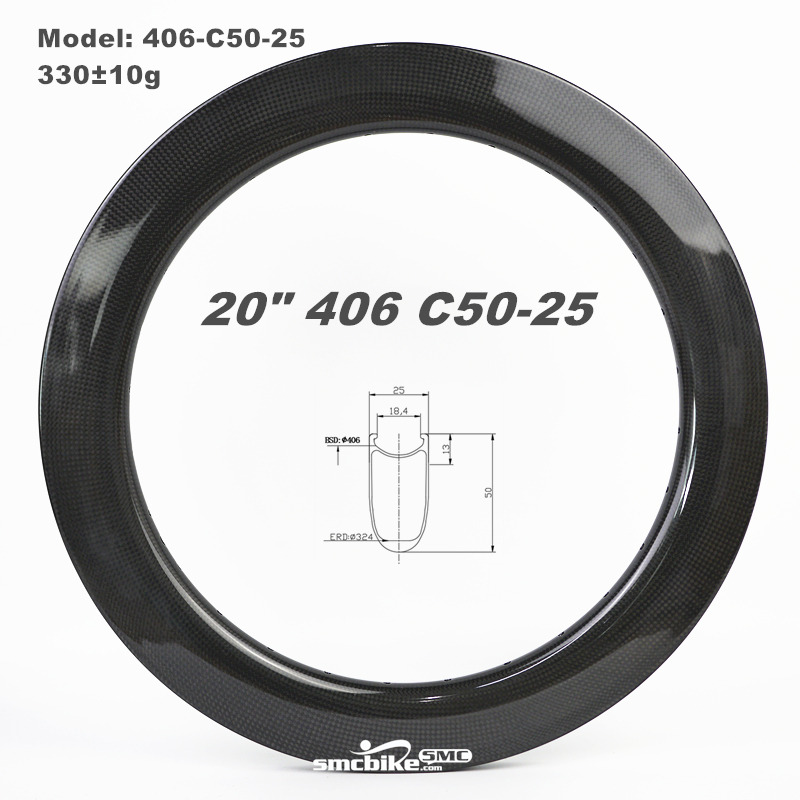

Size: 20" 406
Model: 406-C50-25
Use: Folding bike/recumbent/bmx...
Type: Clincher

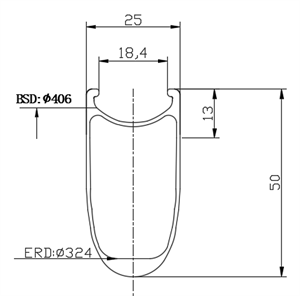

Depth: 50MM
Inner/outer Width: 18.4mm/25mm
ERD: 324mm(not including nipple)
Weight: 330+/-10g
Weave: UD/3K/12K/Marble
Finish: Matte/Glossy
Holes: 14H to 36H
Weight limit: Max 130kg/286lb
Spoke Tension: ≤150kgf recommended
Tire pressure: Max 130 psi/8.96bar
Tire width: 25 to 47 recommended
