Overview
Plume ultra light series carbon wheels are made for light, made for speed, from 680±20g/pair.
Wheelsets support customization：

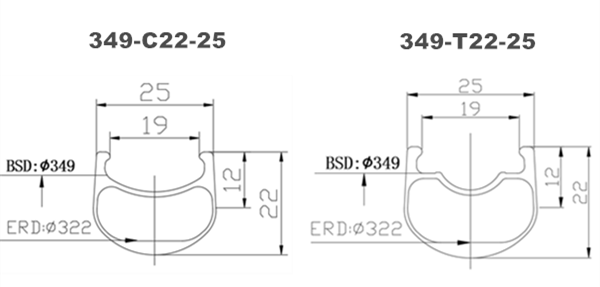

1. Plume rim options: 349-C22-25(190g) or 349-T22-25(190g) (Tubeless).
2. Hub options:
a. Brand: RHET ceramic 7-speed or Hubsmith or Extralite or others.
b. Hub O.L.D.: Front 74mm QR, Rear 112mm QR or nut.
c. Freehub options: Hubsmith 2-speed or Hubsmith 3/4-speed or RHET 7-speed (Ratchet system)
3. Spokes and nipples options: Pillar spokes or HT spokes or Sapim spokes.
Bladed spokes are preferred; however, due to the short spoke length required for small wheels,
suitable sizes may not always be available, necessitating the use of round spokes.
The spokes are available only in black, but the nipples come in balck, red, silver, gold, blue, and other colors.
4. Custom Decals: Black or Red or White or Gold or Pink or Brown or Customize.
Weights of certain configuration combinations:

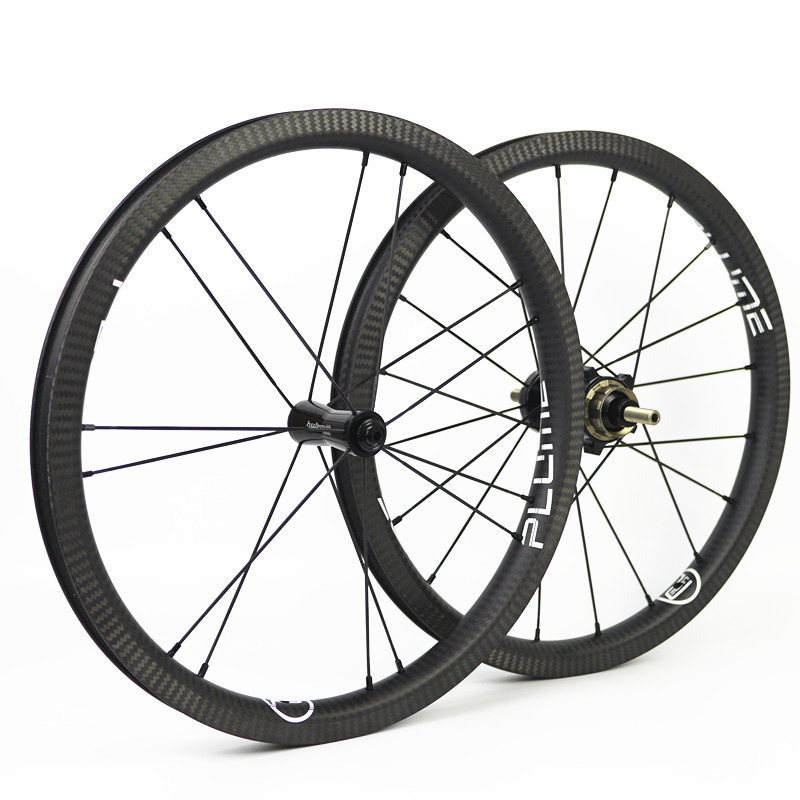

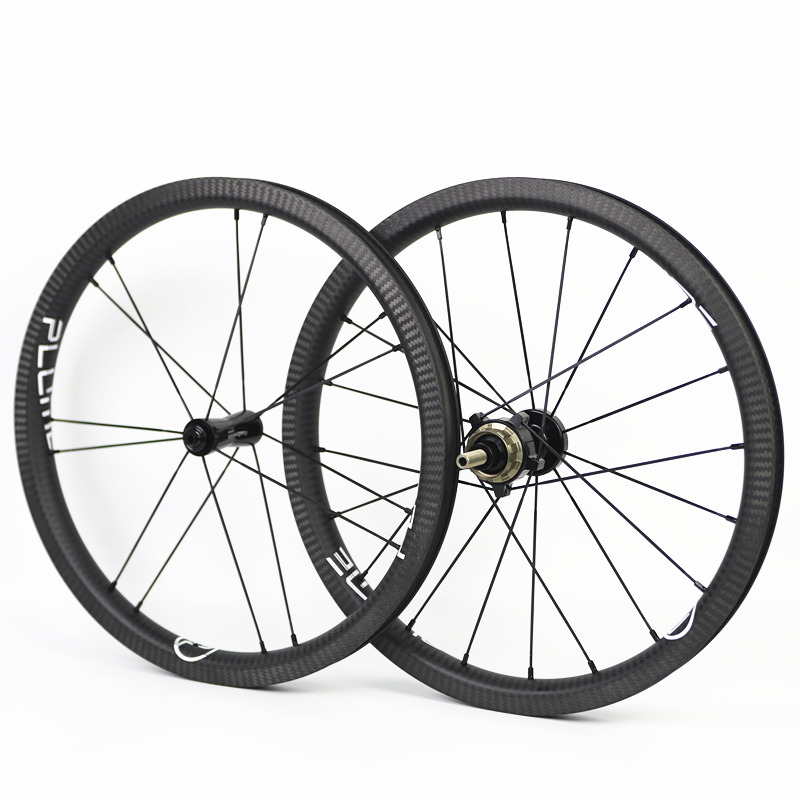

1. 349-C22-25 rim + Hubsmith RS02F/RS20R + Pillar 1422 spokes: 760±20g. (The image shows)
2. 349-T22-25 rim + RHET ceramic hub 7-speed + Pillar 1420 spokes: 800±20g.
3. 349-C22-25 rim + Extralite SP + Pillar 1420 spokes: 680±20g.
Optimized the carbon rim structural, lowed the rim height to 22MM, and with a aerodynamic design, using both T800 and T700 carbon fiber, which can guarantee the wheel linghter and still strong.

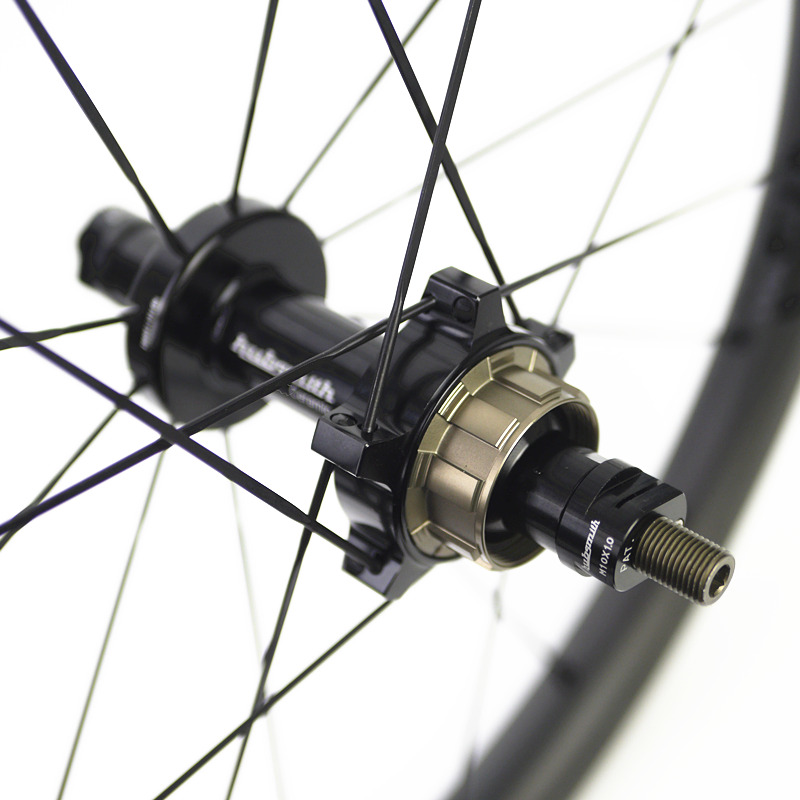

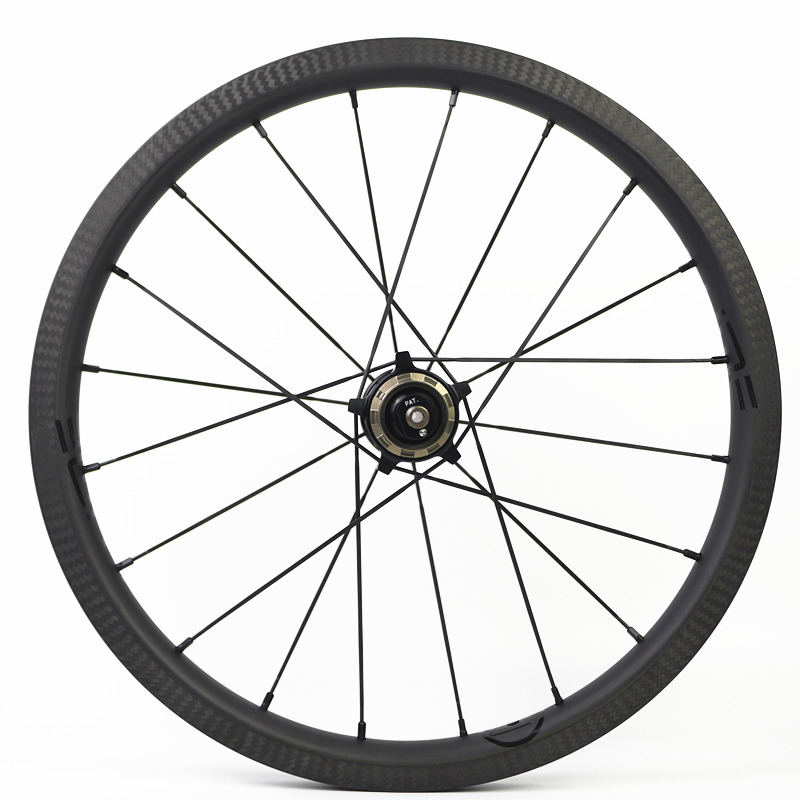

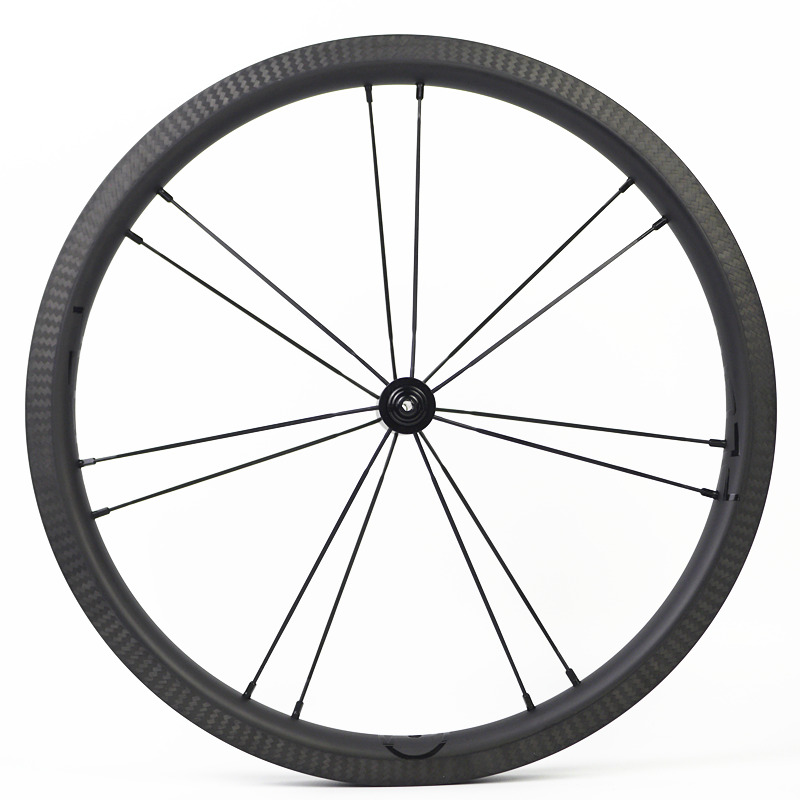

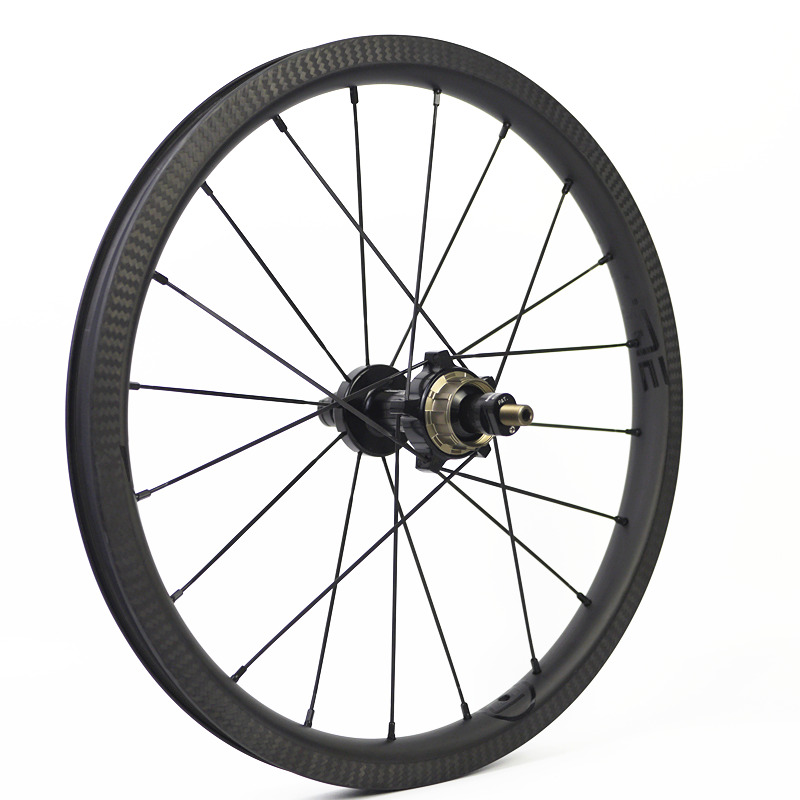

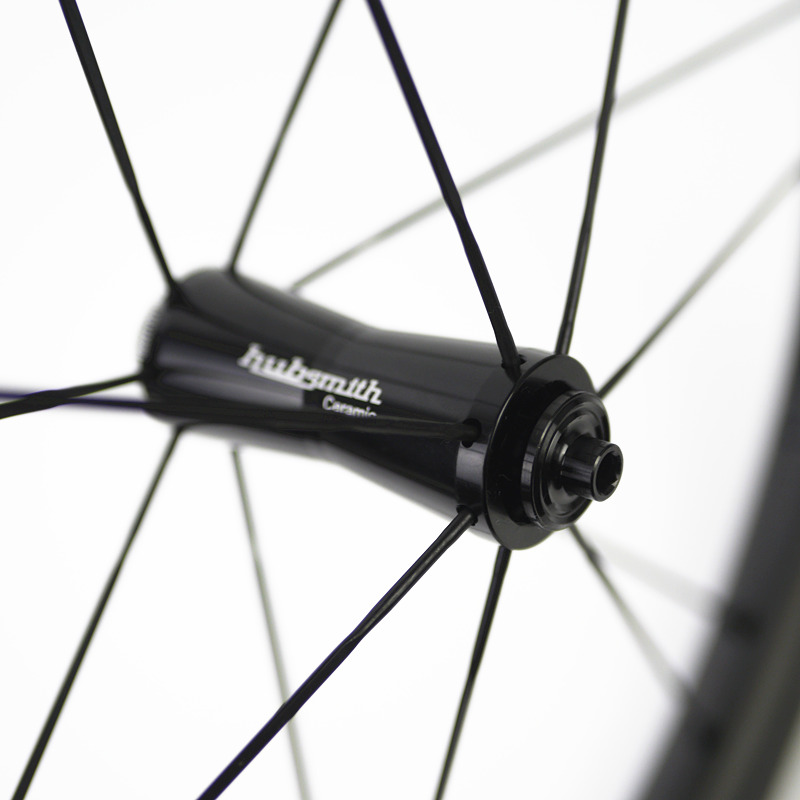

Wheel build with hubsmith or RHET pulled hub, which are ultra light hubs, and with TPI ceramic bearing. Front wheel with 14H holes paired spokes or 16H average, which beautiful and lighter, rear wheel with 20H holes design, which lighter and strong enough.
Precise calculation carbon rim's spoke hole angle to proper fit the hub's hole, which decrease spoke tension and spoke fatigue.
1. Minimum order quantity(MOQ): 1 pair.
2. Wheelset including front titanium axle and rear fixing nut.
3. Support worldwide shipping, Lead time: 5-25 days.
4. 5 years Warranty, any quality defects replace for free.
Please feel free to contact us for more details.
Specs
| Size: | 16" 349 |
| Model: | PLUME-349-CW2 |
| Use: | Brompton 2/3/4-speed or 7-speed |
| Type: | Tubeless or Clincher |

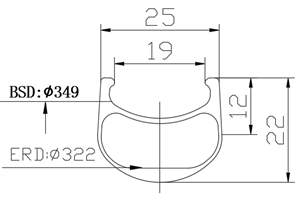

| Depth: | 22MM |
| Inner/outer Width: | 19mm/25mm |
| ERD: | 322mm(not including nipple) |
| Weight: | From 680g |
| Weave: | UD/3K Twill/Marble |
| Finish: | Matte/Glossy |
| Hub: | Hubsmith or RHET |
| Hub O.L.D.: | 74mm/112mm |
| Hub bearing: | Ceramic |
| Hub color: | Black |
| Nipple color: | Black |
| Spokes: | Pillar 1420 or 1422 spokes |
| Holes: | Front 14H or 16H, Rear: 20H |
| Weight limit: | Max 110kg/243lb |
| Tire pressure: | Max 110 psi/7.58bar |
| Tire width: | 25 to 47 recommended |
