Overview

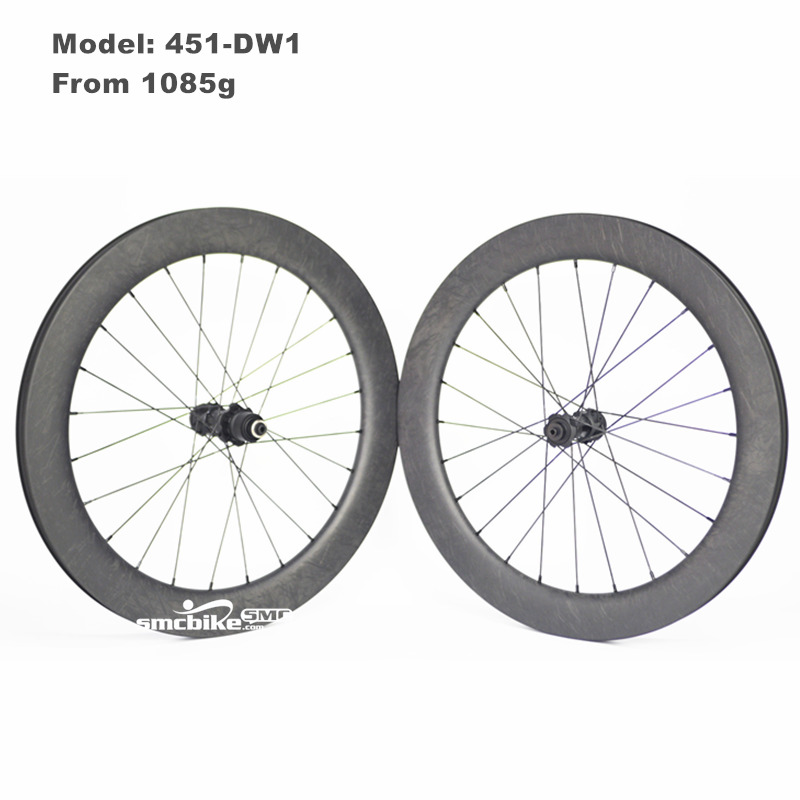

SMC cusmtom ETRTO 451mm carbon wheelset, from 1085g/pair.
Customizable options：
1. Rim options: 451-T50-25(320g) or 451-W50-27(330g) or 451-C38-25(330g)
or 451-C35-23(320g) or 451-C30-25(320g).
2. Hub options:
a. Brand: RHET ceramic or Hubsmith or Chrisking or DT swiss or others.
b. Hub O.L.D.: Front 100mm QR or 100*12mm thru.
Rear 135mm QR or 142mm*12mm thru.
c. Freehub: Hyperglide (HG) or XDR or Microspline (MS).
3. Spokes and nipples options: Pillar spokes or HT spokes or Sapim spokes.
Bladed spokes are preferred; however, due to the short spoke length required for small wheels,
suitable sizes may not always be available, necessitating the use of round spokes.
The spokes are available only in black, but the nipples come in black, red, silver, gold, blue, and other colors.
4. Custom Decals: Black or Gray or White or Bumblebee or Gold or Pink or Red or Customize.
Weights of certain configuration combinations:
1. 451-T50-25 rim + RHET hub + Pillar 1420 spokes: 1085±25g.

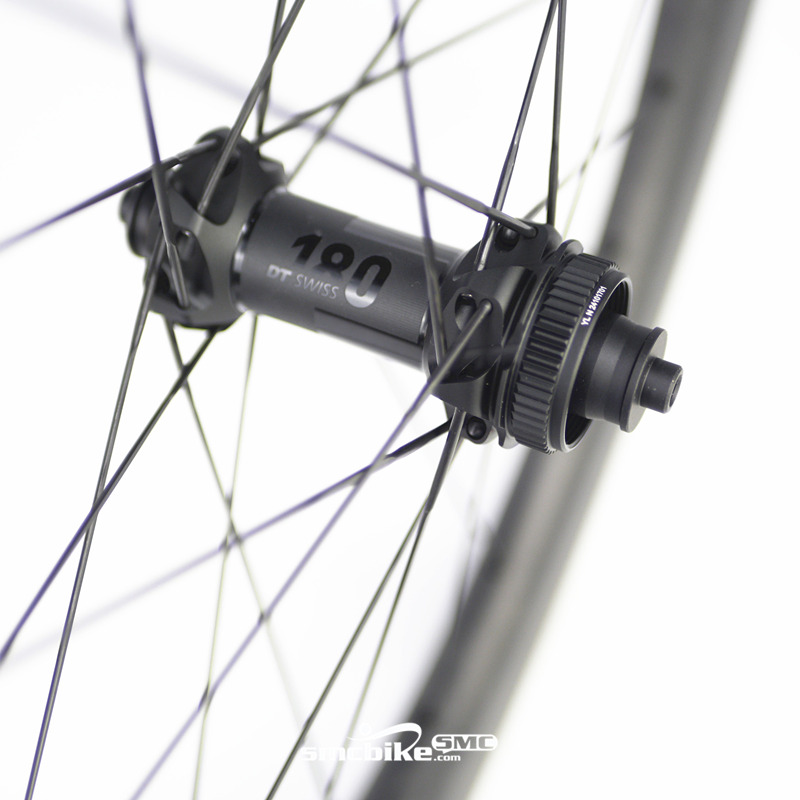

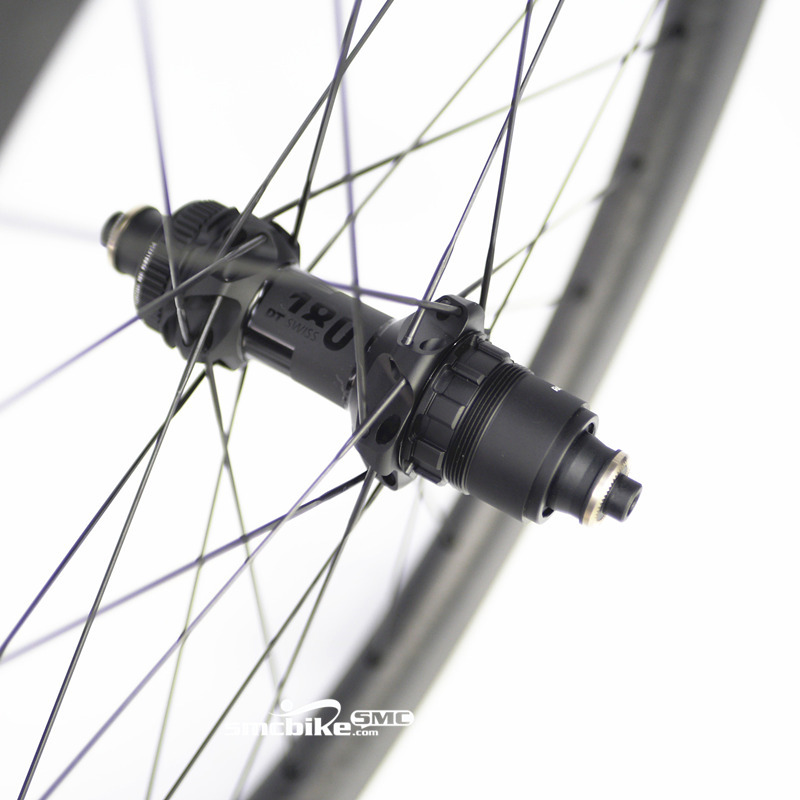

2. 451-T50-25 rim + DT180 hub + Pillar 1420 spokes: 1100±25g. (The image shows)
3. 451-C38-25 rim + RHET hub + Pillar 1420 spokes: 1100±25g.
4. 451-C30-25 rim + RHET hub + Pillar 1420 spokes: 1085±25g.
5. 451-C30-25 rim + Hubsmith R027 hub + Pillar 1423 spokes: 1180±25g.
6. 451-C38-25 rim + Hubsmith R041 hub + HT 425 spokes: 1220±25g.
This 451 carbon wheel can be used for Dahon, Tern bike, Tyrell, Fsir, Bike friday, Folding bike etc.
Rim with a aerodynamic design, and optimized the carbon rim structural, which can guarantee the rim linghter and strong.
Also precise calculation carbon rim's spoke hole angle to proper fit the hub's hole, which decrease spoke tension and spoke fatigue.
1. Minimum order quantity(MOQ): 1 pair.
2. Wheelset including titanium QR, Thru-axle not included.
3. Support worldwide shipping, Lead time: 2-25 days.
4. 5 years Warranty, any quality defects replace for free.
Please feel free to contact us for more details.
Specs
| Size: | 20" 451 |
| Model: | SMC-451-DW1 |
| Use: | Folding bike friday |
| Type: | Tubeless or Clincer |
| Depth: | 30MM/35MM/38MM/50MM |
| Inner/outer Width: | 19/25mm |
| ERD: | 368mm(not including nipple) |
| Weight: | from 1085g |
| Weave: | UD/3K/12K/Marble or Twill |
| Finish: | Matte/Glossy |
| Hub: | Hubsmith/RHET/DT/Chrisking |
| Hub O.L.D.: | 100/135/142mm*12 |
| Hub bearing: | Standard or Ceramic |
| Hub color: | Black |
| Nipple color: | Black/Silver/Red/Glod/Blue |
| Spokes: | Pillar or HT or Sapim |
| Holes: | Front 20/24H, Rear: 24H |
| Weight limit: | Max 130kg/286lb |
| Tire pressure: | Max 130 psi/8.96bar |
| Tire width: | 25 to 47 recommended |
